Important Tips!

Please install the led strips on the main cable at first, after the led strips are all installed, then connect power supply!

Please DO NOT install or take off the led strip when the controller is powered on. This is easy to get the main cable burnt!

NOTE:

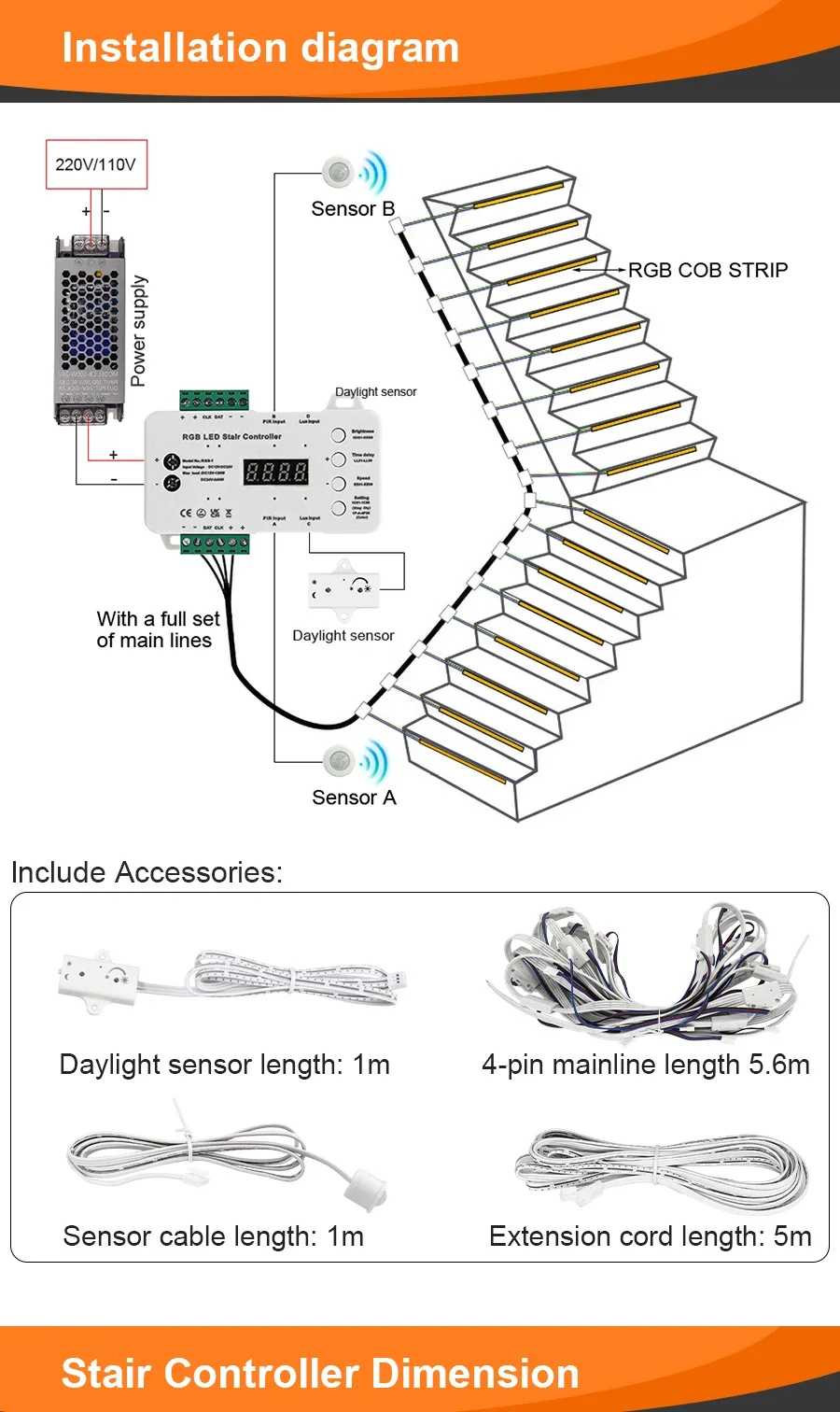

1:A/B sensors need to be installed at the entrance and exit of the stairs and face the human body.

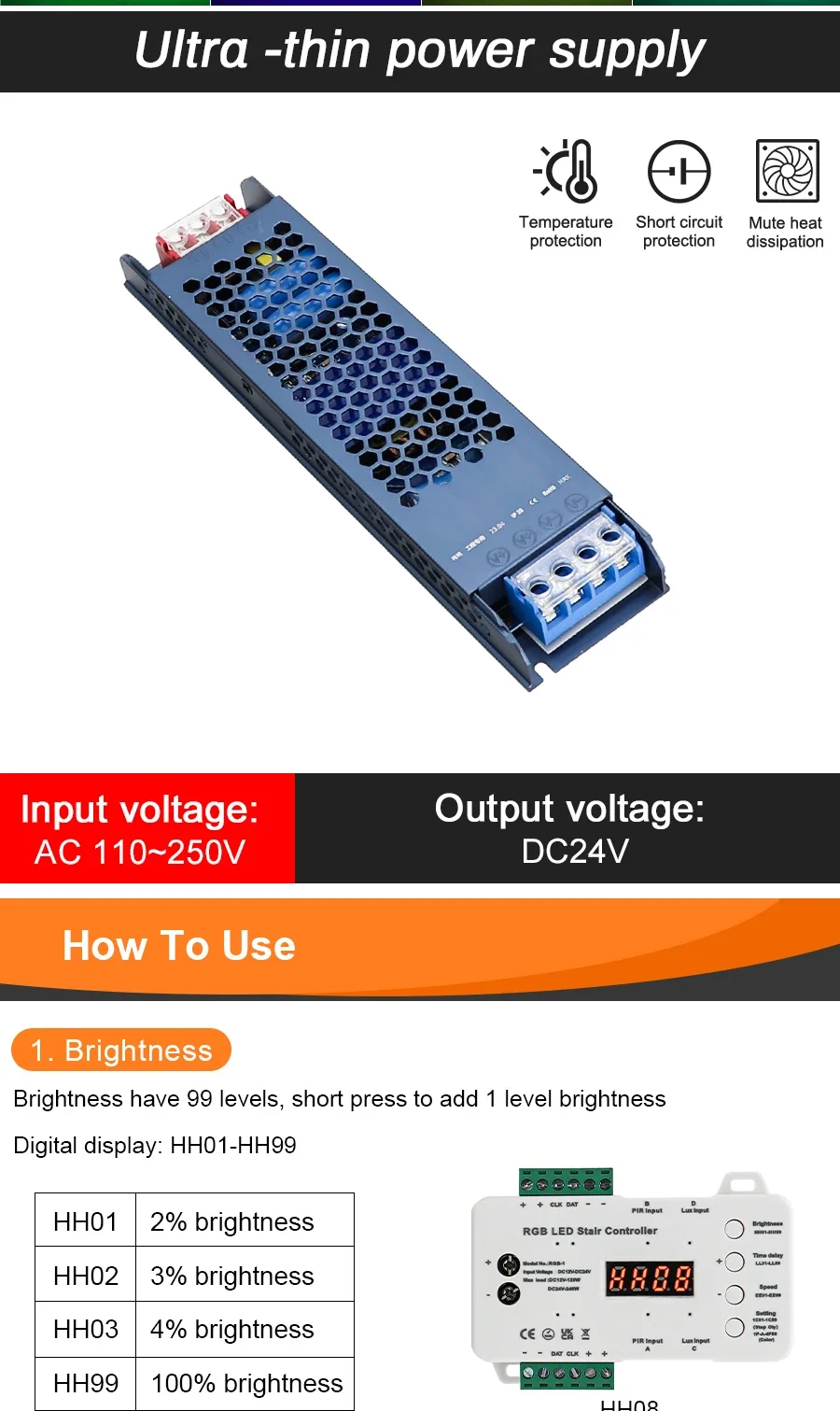

2:The product is low voltage 12V-24V, need to connect transformer. Do not directly connect 220V, it will burn the controller.

3:The product is not waterproof.

How To Use

1. Setting

Long press “Setting” to set Brightness, Time Delay, Speed, Number of Steps, Color.

Mode selection: CH-3

2. Brightness

Brightness have 99 levels, short press to add 1 level brightness

Digital display: HH01-HH99

HH01——————2% brightness

HH02——————3% brightness

HH03——————4% brightness

HH99——————100% brightness

3. Time delay

Time delay have 99 levels, short press to add 1 level time delay

Digital display: LL01-LL99

LL01——————4S

LL02——————6S

LLO3——————8S

LL99——————200S

4. Speed

Speed have 99 levels, short press to adjust speed

Digital display: EE01-EE99

EE01——————150ms fastest speed

EE02——————175ms

EEO3——————200ms

EE99——————2600ms slowest speed

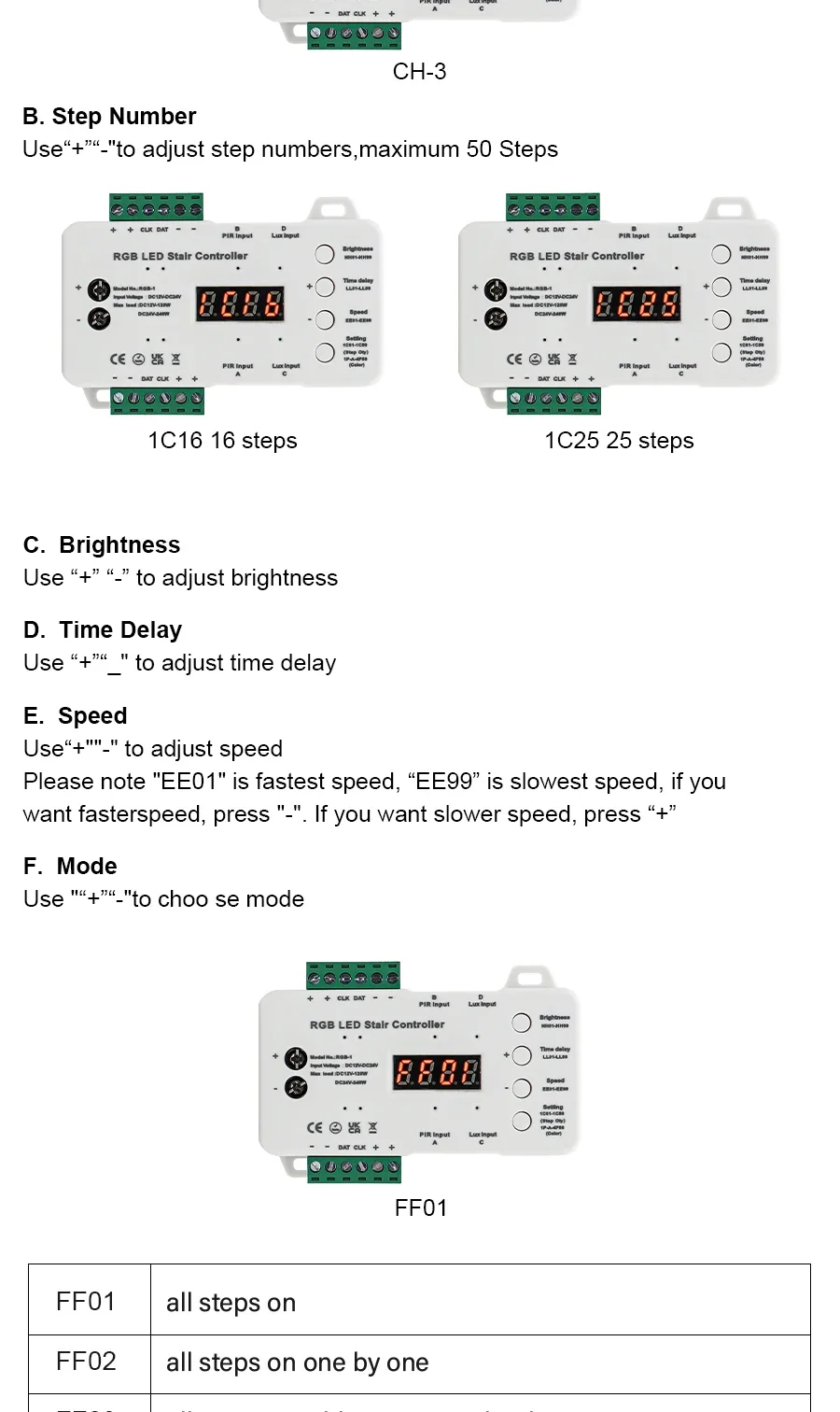

5. Set the number of stairs

1C01 —————— 1st Floor, 1st floor stairs

1C05 —————— 1st Floor 5 Stairs

1C10 —————— 1st Floor 10 Stairs

2C01 —————— 2nd Floor, 1 Staircase

2C05 —————— 2nd Floor 5 Stairs

2C10 —————— 2nd floor 10 stairs

6. Choose a color

Color series: 1P/2P/3P/4P,

Long press “brightness”: select series color

56 colors in one series

1P01–the first color of 1P series

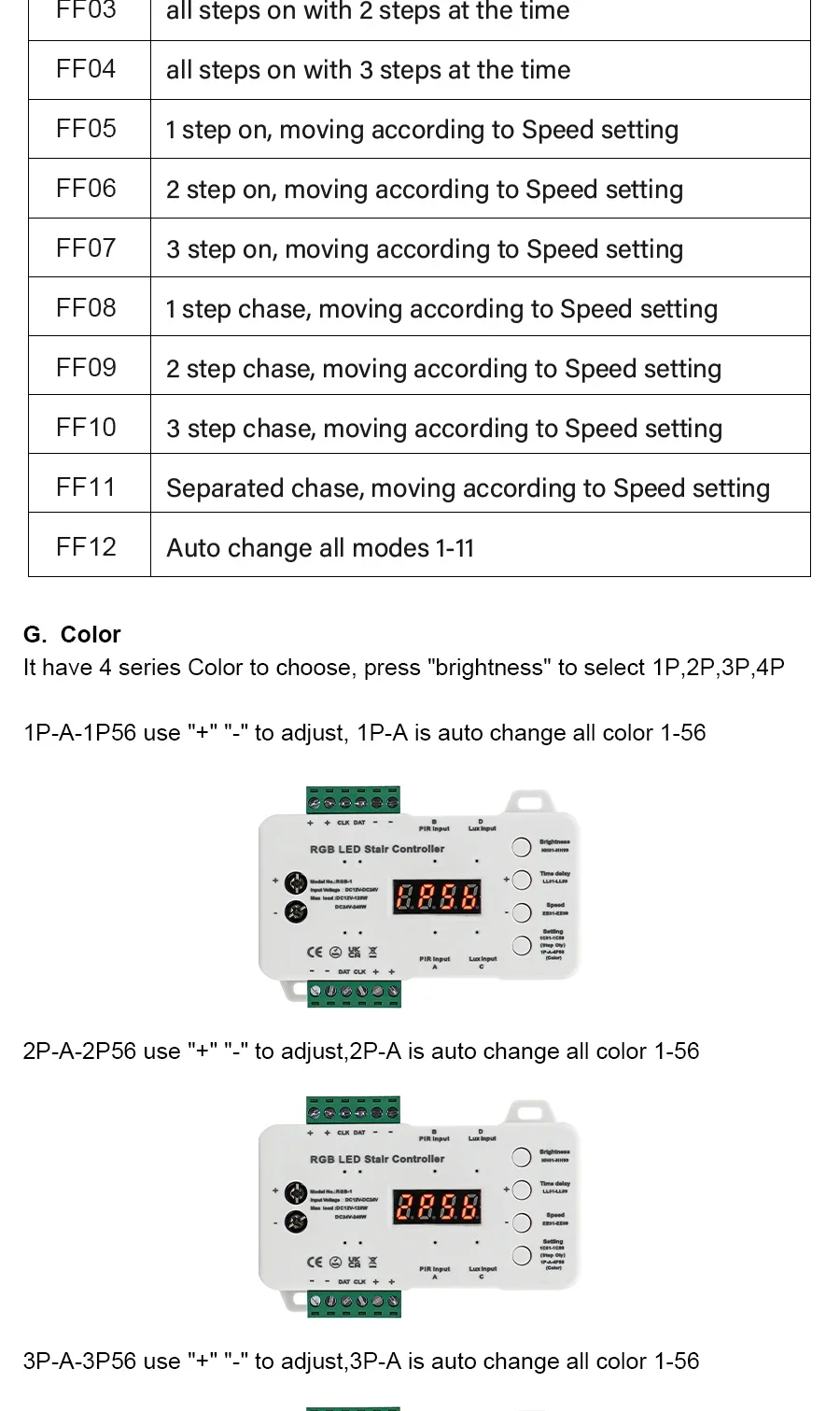

7.Set the working mode of the light strip (12 modes)

FF01——————The first mode

FF05——————The fifth mode

FF010——————The tenth mode

Use “+” “-” to select mode

Product Name:RGB LED Stair Controller

Input voltage:DC12-24V

Output voltage:DC12V or DC24V

Output current:10A

Output power:DC12V / 120W; DC24V / 240W max

Sensor:2 PIR sensors & 1 daylight sensor

Features:4PIN main line 1 drag 16 steps

Adjustable:mode / brightness/delaytime / speed

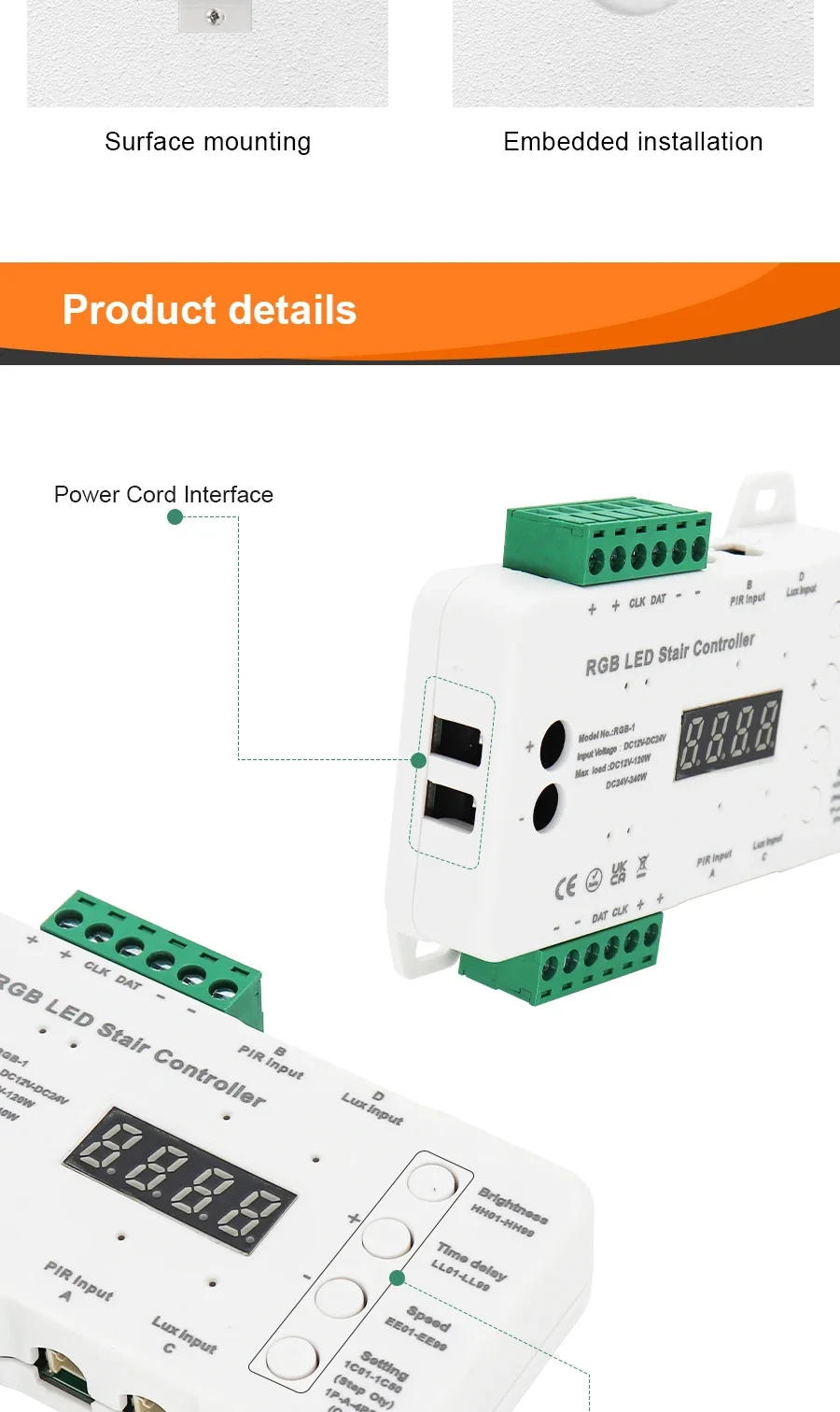

PIR sensors:fixed installation or embedded installation (15mm diameter only)

Housing:High quality ABS plastic

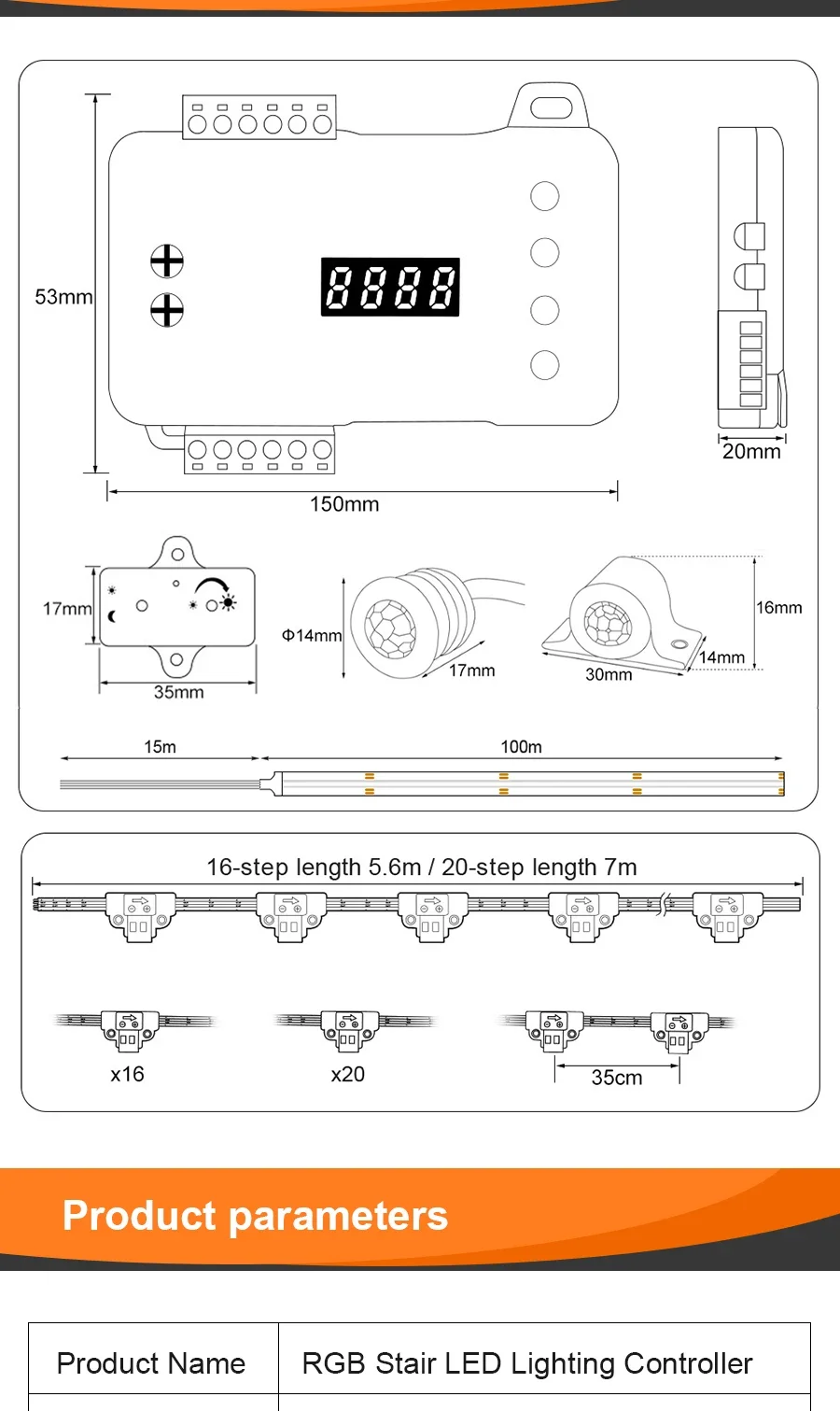

Controller size:L150*W53*H20(mm)
